Whole Home Filtration
Infinity™ II with Scaleguard
For low hardness, high chlorine, poor taste & odor
Salt free water conditioning for your entire home
The Infinity II with ScaleGuard system provides whole home filtration best suited for low hardness, high chlorine water with a poor taste or smell. This state of the art system is manufactured exclusively by HMI Water Specialists and is individually engineered based on your unique water conditions. The Infinity™ system uses a four stage process to achieve bottled water quality at every tap in your home.
To view your city’s water hardness, check out our Water Hardness Table.
To view your city’s water hardness, check out our Water Hardness Table.
How it Works
STAGE 1: pH Neutralization
Fine sediment particles, sand, silica and iron oxide are trapped in a filter that is flushed and backwashed when the Infinity system regenerates. This will also adjust the pH to a neutral range depending on acidic or alkaline applications.
STAGE 2: Stratified MicroPore Carbon
Finely ground coconut shell carbon has more surface area for longer bed life and lighter weight than ion-exchange media maintaining filter bed depth after back wash.
STAGE 3: ScaleGuard
ScaleGuard™ Salt-Free Water Conditioning System’s Crystallization (TAC) media, also known as Matrix Enabled Particularization or MEP process, transforms calcium ions into calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow.
STAGE 4: Bacteriostatic KDF 55 & 85
High purity copper-zinc granules that reduce contaminants using oxidation/reduction (redox). KDF reduces/removes chlorine, iron, hydrogen sulfide, and heavy metals, and inhibits the growth of microorganisms in potable water without the use of chemicals. View full list of impurities removed here.
Product Information
Product Specs
Resources

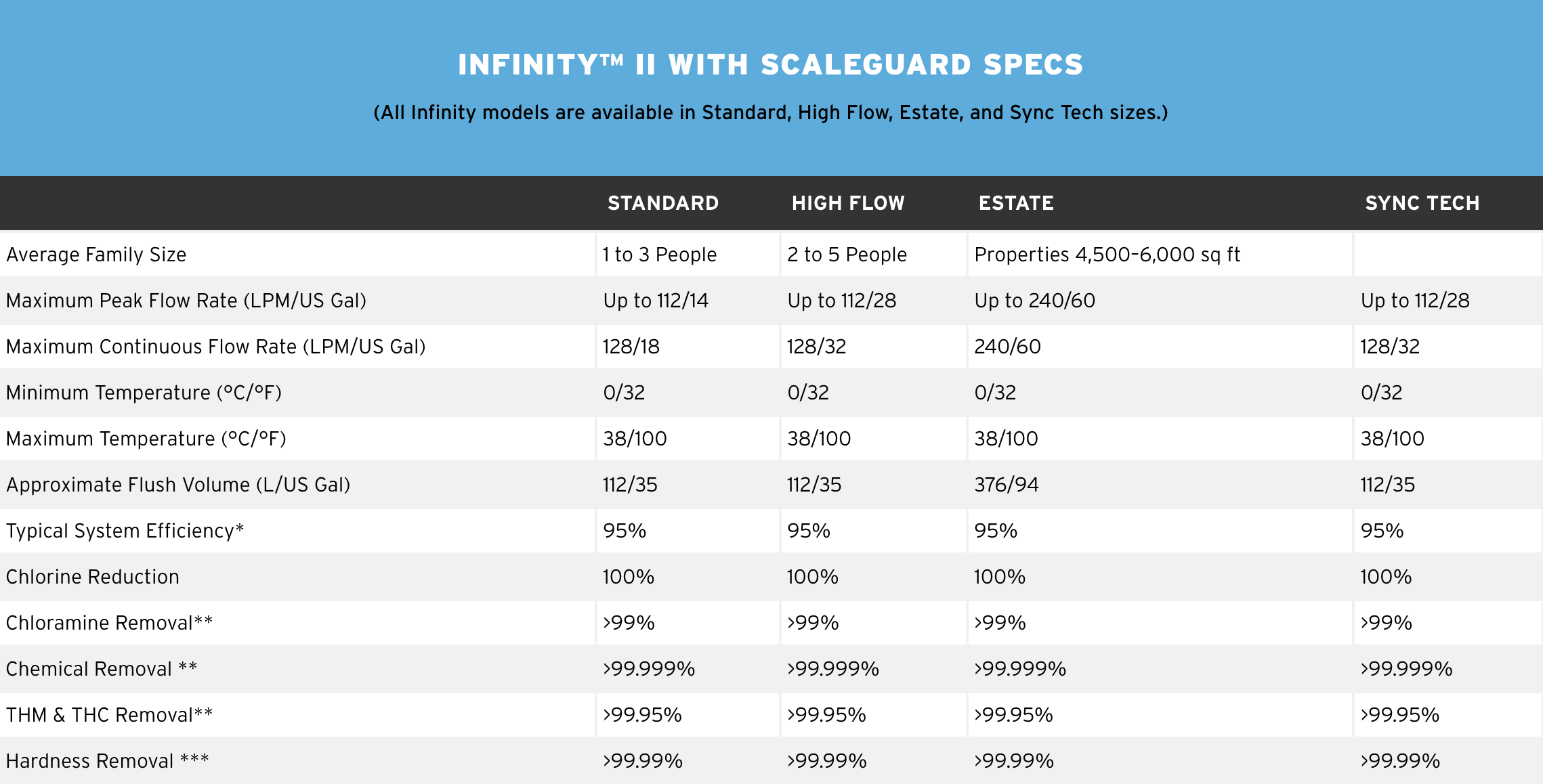

Product Specs
All Infinity models are available in Standard, High Flow, Estate, and Sync Tech sizes.
*Depends upon model, water quality & flow rate
**Please see certification
***Varies by model
| STANDARD | HIGH FLOW | ESTATE | SYNC TECH | |
|---|---|---|---|---|
| Average Family Size | 1 to 3 People | 2 to 5 People | Properties 4,500–6,000 sq ft | |
| Maximum Peak Flow Rate (LPM/US Gal) | Up to 112/14 | Up to 112/28 | Up to 240/60 | Up to 112/28 |
| Maximum Continuous Flow Rate (LPM/US Gal) | 128/18 | 128/32 | 240/60 | 128/32 |
| Minimum Temperature (°C/°F) | 0/32 | 0/32 | 0/32 | 0/32 |
| Maximum Temperature (°C/°F) | 38/100 | 38/100 | 38/100 | 38/100 |
| Approximate Flush Volume (L/US Gal) | 112/35 | 112/35 | 376/94 | 112/35 |
| Typical System Efficiency* | 95% | 95% | 95% | 95% |
| Chlorine Reduction | 100% | 100% | 100% | 100% |
| Chloramine Removal** | >99% | >99% | >99% | >99% |
| Chemical Removal ** | >99.999% | >99.999% | >99.999% | >99.999% |
| THM & THC Removal** | >99.95% | >99.95% | >99.95% | >99.95% |
| Hardness Removal *** | >99.99% | >99.99% | >99.99% | >99.99% |
*Depends upon model, water quality & flow rate
**Please see certification
***Varies by model
Resources
| Product Resources | |
|---|---|
| Product Spec Sheet | Product Spec Sheet |
| Water Hardness Table | Water Hardness Table |
| Chemicals Removed Table | Chemicals Removed Table |
Product Information
| Product Spec Sheet | Product Spec Sheet |
| Technical Specs | Technical Specs |
| Water Hardness Table | Water Hardness Table |
| Chemicals Removed Table | Chemicals Removed Table |
Our water experts are here to help you select the right solution for your home.
